Yanmar Engine Parts: Sourcing Strategy and Component Selection for Small Diesel Platforms

Heavy equipment operators face a recurring dilemma when critical components fail. A failed fuel injector on a 4TNV98-powered mini excavator can halt a jobsite for days, not because the part is unavailable, but because finding authentic components requires navigating fragmented supply chains. Yanmar engine parts occupy a distinct position in the industrial maintenance ecosystem, serving compact diesel platforms across construction, agriculture, and power generation sectors where downtime carries disproportionate financial consequences.

Unlike mass-market automotive engines, small-displacement industrial diesels rely on precision manufacturing tolerances and component-level compatibility that generic aftermarket parts struggle to replicate. Understanding what separates functional replacement from genuine OEM-grade components becomes essential when equipment utilization rates determine project profitability.

Why Small Industrial Diesels Demand Specific Component Standards

Compact diesel engines like Yanmar's 3TNV and 4TNV series operate under conditions fundamentally different from their larger counterparts. These platforms generate high specific output—power per liter of displacement—by running at elevated combustion pressures and tighter thermal margins. A 4TNV88 producing around 20 horsepower from roughly 1.3 liters achieves meaningful power density for its size, yet must maintain reliability across thousands of service hours in unpredictable load scenarios.

This performance envelope leaves little room for dimensional variance. Piston ring end gaps measured in hundredths of a millimeter directly affect blow-by rates and oil consumption. Valve stem clearances outside specification accelerate guide wear and compromise sealing. Crankshaft journal tolerances influence bearing life and lubrication film stability. These parameters exist in tight interdependence—replacing a single worn component with an improperly matched part cascades stress through adjacent assemblies.

The challenge intensifies when equipment operates in mixed fleets. A rental company maintaining excavators from multiple manufacturers may encounter three different Yanmar engine configurations across a dozen machines, each requiring distinct gasket sets, injection components, and rotating assemblies. Part interchangeability becomes critical not just for repair speed but for inventory management efficiency.

Component Categories and Their Functional Hierarchy

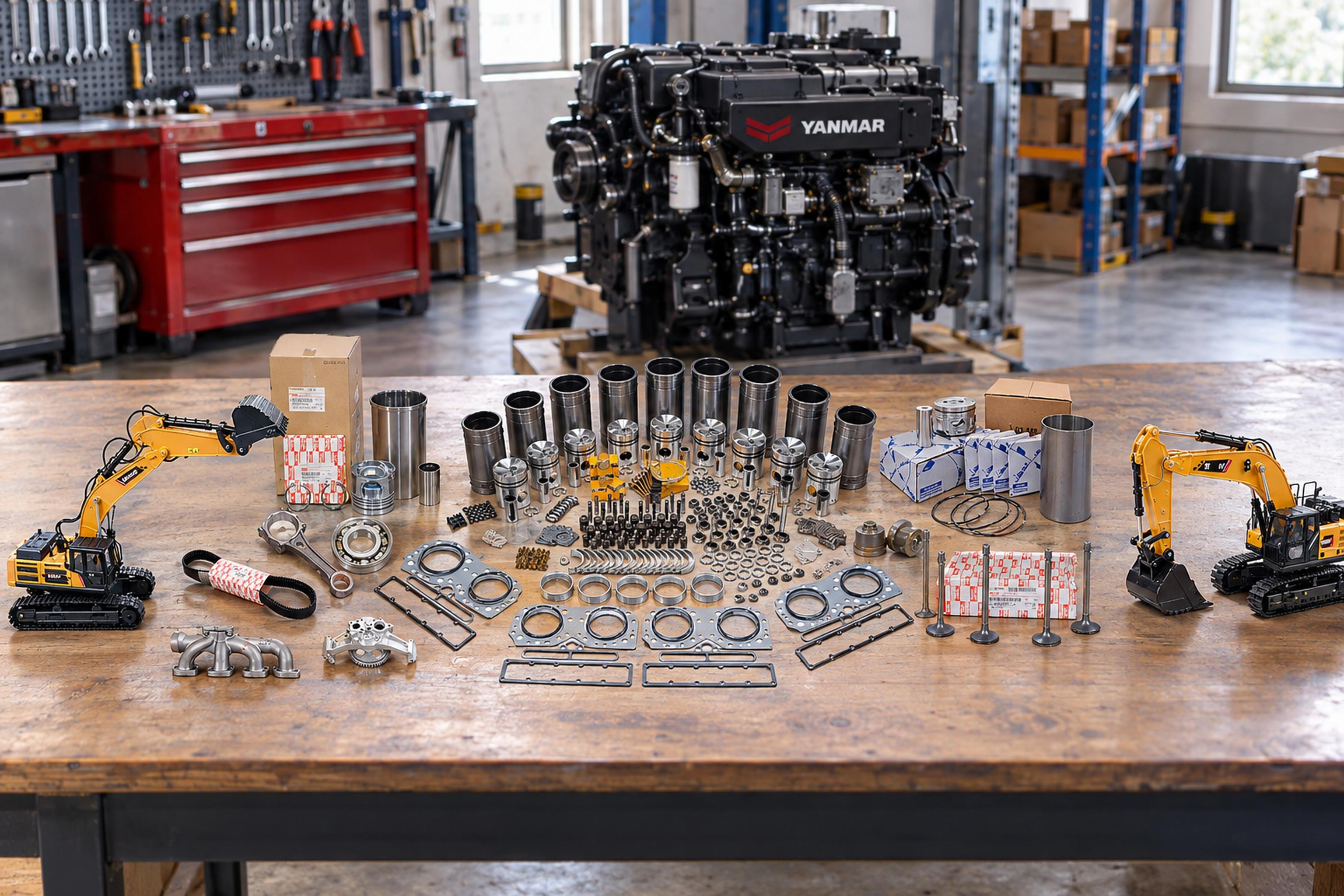

Yanmar engine rebuilds and maintenance activities center on several functional groupings, each with different failure modes and replacement intervals:

• Rotating assemblies: Crankshafts, connecting rods, and pistons form the mechanical foundation, typically requiring replacement during major overhauls after extended service or catastrophic failure events like bearing seizure or connecting rod failure
• Sealing systems: Cylinder head gaskets, valve stem seals, and O-rings manage pressure boundaries and fluid retention, often the first components to degrade under thermal cycling
• Fuel delivery mechanisms: Injection pumps, nozzles, and pressure regulators control combustion quality, with wear patterns directly affecting emissions compliance and power output
• Wear surfaces: Cylinder liners, valve guides, and thrust washers absorb sliding friction and require dimensional inspection during any significant disassembly

Engine series like the 3TNV88, 4TNV98, and 4TNE94 share architectural similarities but employ different bore-stroke combinations, injection strategies, and valve timing. A naturally aspirated 4TNV98 uses injection components unsuitable for a turbocharged variant of the same family, since boost pressure changes fueling requirements. Part cataloging errors at this level result in field incompatibilities that surface only during installation attempts.

Experienced technicians prioritize component verification before disassembly begins. Matching engine serial numbers to parts lists prevents sourcing delays that extend equipment downtime. This pre-validation step proves particularly valuable for older engines where mid-production specification changes created multiple part revisions within a single model year.

Evaluating Supply Chain Options for Critical Components

Maintenance teams typically encounter three sourcing pathways when ordering Yanmar engine parts: manufacturer-authorized dealers like Marun, independent aftermarket suppliers, and salvage operations. Each channel presents different tradeoffs in cost, availability, and quality assurance.

Authorized dealers maintain direct relationships with OEM supply networks, providing access to current production components with full traceability. This channel delivers highest confidence in dimensional accuracy and material specifications but operates at premium pricing. For remanufactured engines or insurance-covered repairs where warranty preservation matters, this route becomes non-negotiable.

Aftermarket suppliers offer cost advantages by sourcing from third-party manufacturers producing to ostensibly compatible specifications. Quality varies enormously across this segment. Reputable aftermarket brands invest in reverse engineering and testing to match OEM performance, while marginal operators simply copy external dimensions without validating metallurgy or heat treatment protocols. A connecting rod that appears identical may use inferior alloy composition, failing prematurely under peak combustion loads.

Salvage parts introduce the highest uncertainty. While a used crankshaft from a low-hour engine may perform adequately, hidden damage from improper storage or prior overheating remains undetectable without magnetic particle inspection or ultrasonic testing. For components like cylinder heads where crack propagation develops internally, visual inspection provides insufficient quality assurance.

Matching Components to Service Scenarios

Not all repairs demand identical component strategies. A hydraulic excavator logging significant hours annually in rental rotation faces different maintenance economics than an agricultural pump running seasonal duty at a few hundred hours per year. Aligning parts selection to operational context prevents both over-specification and premature failure.

Major overhauls following bearing failure or cylinder scoring typically justify full OEM component replacement. When disassembly reveals journal wear on a crankshaft, associated bearings, thrust washers, and seals have experienced similar stress cycles. Mixing new and used components in these scenarios creates mismatched wear surfaces that accelerate subsequent degradation.

Preventive rebuilds at manufacturer-recommended intervals allow more flexibility. A 4TNV106 approaching a major service interval may receive OEM rotating assemblies while using premium aftermarket gaskets and seals. This hybrid approach reduces total rebuild cost without compromising critical load-bearing components.

Field repairs addressing isolated failures—a blown head gasket or failed injector—require rapid parts availability over comprehensive specification. An excavator idled on a remote site generates daily opportunity costs exceeding the price differential between OEM and quality aftermarket parts. Here, supply chain responsiveness becomes the dominant selection criterion.

Fleet managers operating mixed equipment inventories face additional complexity. Standardizing on component suppliers who stock parts across multiple Yanmar series reduces procurement overhead and emergency shipping costs. A distributor maintaining inventory depth in 3TNV88, 4TNV98, and 4TNE94 components enables cross-platform maintenance scheduling that optimizes technician utilization.

Technical Specifications That Define Compatibility

Dimensional drawings and material certifications matter more than brand labels when validating component suitability. Several critical parameters separate functional parts from precision-matched replacements:

Piston ring specifications include radial wall thickness, axial height, end gap clearance, and coating composition. A compression ring's edge geometry affects sealing dynamics during the power stroke—sharp edges promote better conformance to cylinder wall irregularities but accelerate initial wear. Oil control rings require specific tension characteristics to maintain optimal film thickness without excessive friction. These properties depend on spring steel metallurgy and heat treatment protocols rarely visible in parts catalogs.

Connecting rod specifications encompass big-end and small-end bore diameters, center-to-center length, and bolt torque values. Even minor dimensional errors here translate to piston deck height variations that alter compression ratio and valve-to-piston clearance. Forged rods provide superior fatigue resistance compared to cast alternatives, particularly in high-cycle applications where material grain structure determines crack initiation thresholds.

Fuel injection components in these engines operate at high pressures, demanding precise nozzle orifice geometry and needle valve sealing surfaces. Injector flow rate matching ensures equal fuel distribution across cylinders, critical for smooth operation and emissions control. Remanufactured injectors require flow bench testing to verify spray pattern uniformity—a specification no visual inspection can assess.

For shops without in-house metrology equipment, requesting dimensional certifications from suppliers provides the only objective quality verification. Certified components include measurement reports showing actual dimensions against specification tolerances, typically generated during manufacturing QC processes. Parts lacking this documentation introduce unquantifiable risk into critical assemblies.

Storage and Handling Practices That Preserve Component Integrity

Proper inventory management extends beyond climate-controlled warehousing. Precision engine components degrade through improper storage even before installation. Steel parts exposed to humidity develop surface oxidation that appears cosmetic but compromises bearing surfaces and sealing faces. Rubber seals and gaskets harden when stored in fluctuating temperatures, losing the elasticity required for effective compression.

Crankshafts and connecting rods require horizontal storage on padded racks that prevent bending stress. Hanging crankshafts by one end induces micro-deformation in journal surfaces, particularly in longer multi-cylinder configurations. Cylinder heads should rest on machined surfaces rather than protruding studs to avoid localized stress concentration.

Fuel injection components demand particular care. Pump assemblies contain precision-lapped plungers and barrels with clearances measured in microns. Any particulate contamination introduced during storage renders these components unusable. Caps and plugs on all openings must remain intact until final installation, and internal preservative oils should not be removed until assembly begins.

Gasket sets deteriorate rapidly in unsealed packaging. Composite head gaskets absorb atmospheric moisture, causing dimensional instability that prevents proper sealing. Storing gasket kits in sealed bags with desiccant packets extends shelf life significantly, particularly in humid climates where exposed materials degrade within months.

How Regional Supply Networks Affect Parts Availability

Geographic location fundamentally shapes procurement strategies for Yanmar engine parts. Equipment operating in industrial centers near major ports accesses broader supplier networks with shorter lead times. Remote sites face compounded challenges—limited local inventory, extended shipping windows, and higher logistics costs that multiply component prices.

For us at Marun, inventory allocation balances turnover rates against emergency supply capacity. High-volume components like filter elements and gasket sets maintain deep stock to support immediate demand. Specialized items such as crankshafts for less common engine series operate on shorter inventory cycles with established expedited ordering channels from Japan. This tiered approach prevents capital lock-up in slow-moving inventory while maintaining service responsiveness for critical repairs.

International parts movement introduces customs and certification complexities, particularly for engines used in regulated applications. Some components require country-specific emissions certifications or material safety documentation before importation. Understanding these requirements during the ordering phase prevents clearance delays that extend already long lead times.

Air freight becomes economically justifiable when equipment downtime costs exceed expedited shipping premiums. A rental excavator generating substantial daily revenue can justify a modest air freight premium to reduce idle time by several days compared to sea freight alternatives. This calculation shifts dramatically for lower-utilization equipment where standard shipping timelines align with maintenance scheduling flexibility.

Diagnostic Approaches That Minimize Unnecessary Replacement

Effective troubleshooting distinguishes between worn components requiring replacement and symptoms caused by incorrect assembly or peripheral system failures. Inexperienced technicians often replace functional parts while overlooking root causes, inflating repair costs without resolving underlying issues.

Low compression readings may indicate worn piston rings, but also result from improperly seated valves, damaged valve seats, or blown head gaskets. Leak-down testing isolates the specific failure mode by pressurizing cylinders and monitoring where air escapes. This diagnostic step prevents unnecessary disassembly and ensures ordered parts address actual deficiencies.

Excessive oil consumption triggers similar diagnostic branching. Worn valve guides allow oil to seep past valve stems into the combustion chamber, but so do failed turbocharger seals or clogged crankcase ventilation systems. Pressure testing turbo housings and inspecting PCV valve function eliminates these variables before committing to cylinder head work.

Fuel system problems manifest as rough running, hard starting, or power loss, symptoms compatible with worn injectors, weak lift pumps, contaminated fuel, or air system leaks. Fuel pressure testing at multiple points in the delivery system, combined with injector balance testing, identifies whether replacement components should target injection hardware, fuel pumps, or upstream filtration.

Bearing noise demands immediate investigation but doesn't always necessitate complete engine replacement. Spun bearing shells result from oil starvation events—addressing the lubrication failure may require only bearing replacement if crankshaft journals remain within specification. Measuring journal diameters with micrometers determines whether machining or crankshaft replacement becomes necessary.

Common Failure Patterns and Their Prevention

Certain wear patterns recur predictably across Yanmar engine families, reflecting inherent design characteristics and typical operating conditions. Recognizing these tendencies informs preventive maintenance strategies that extend component life between major services.

Valve guide wear accelerates in engines operating with extended oil change intervals or inadequate filtration. Guides act as wearing surfaces for valve stems, with clearances gradually increasing until oil consumption rises and valve sealing deteriorates. Replacing guides during routine head work—even if not yet failing—prevents premature valve train degradation in high-hour engines.

Cylinder liner cavitation affects engines experiencing sustained high-load operation or coolant maintenance neglect. Coolant-side pitting initiates from vapor bubble collapse against liner walls, eventually perforating the cylinder jacket. Using correct coolant formulations with proper inhibitor concentrations prevents this electrochemical process. Liners showing early cavitation damage may continue functioning for extended periods if coolant chemistry is corrected.

Injection pump failures often trace to contaminated fuel supplies rather than component defects. Particulate matter or water ingestion scores precision surfaces in pump assemblies, accelerating wear that manifests as starting difficulties or uneven running. Installing high-efficiency fuel filtration and maintaining water separator service prevents damage that prematurely ages injection hardware.

Thrust washer degradation occurs when engines frequently transition between forward and reverse operation under load, common in excavator and loader applications. These washers control crankshaft end-play by absorbing axial loads from torque converter or drivetrain forces. Monitoring end-play during oil changes provides early warning of thrust washer wear before it progresses to bearing damage.

Documentation Practices That Support Long-Term Fleet Management

Systematic record-keeping transforms reactive maintenance into predictive operations. Tracking component replacement intervals, failure modes, and vendor sources builds institutional knowledge that optimizes future procurement and service scheduling decisions.

Engine-specific maintenance logs should record hours at each service event, components replaced, and any anomalies observed during disassembly. This history reveals whether particular parts consistently fail prematurely, suggesting either operational factors or supplier quality issues requiring investigation. A pattern of repeated head gasket failures might indicate overheating problems rather than gasket defects.

Parts source documentation enables quality evaluation across vendors. If injectors sourced from one supplier consistently underperform compared to another, that data justifies procurement policy adjustments. Similarly, identifying which aftermarket brands deliver OEM-equivalent longevity versus premature failure guides cost-benefit decisions on future orders.

Failure analysis photographs preserve diagnostic observations that fade from memory. Capturing bearing wear patterns, piston crown carbon deposits, or cylinder wall scoring before cleanup provides reference material for troubleshooting similar symptoms on other engines. These visual records prove particularly valuable when training new technicians on failure mode recognition.

Warranty claim documentation requires detailed component traceability. Manufacturers evaluate claims based on proper installation procedures, correct parts application, and adherence to service intervals. Missing documentation weakens claims even when failures result from genuine defects. Maintaining complete installation records, torque specifications applied, and component serial numbers protects warranty coverage.

Regulatory Considerations in Component Selection

Emissions regulations increasingly constrain engine service and parts selection options, particularly in markets enforcing strict compliance standards. Installing non-compliant components may void certifications and expose operators to regulatory penalties, even in older equipment not originally subject to current standards.

Fuel injection components directly affect emissions output. Aftermarket injectors that fail to maintain proper spray atomization increase particulate and NOx emissions beyond permitted thresholds. Some jurisdictions prohibit installation of non-certified injection hardware on any engine subject to emissions testing, regardless of component price advantages.

Replacement engine assemblies must match original emissions tier classifications when regulations prohibit retrofitting older-standard engines. An excavator originally equipped with a certified lower-emissions engine cannot legally receive a non-certified replacement in markets enforcing emissions tiers at the equipment level. Understanding these restrictions before ordering prevents compliance violations that jeopardize equipment operation.

Coolant and oil specifications increasingly incorporate environmental considerations beyond engine protection. Biodegradable hydraulic fluids and low-phosphorus coolants reduce environmental impact from inevitable leaks but require compatible seals and gaskets. Using seal materials not designed for these formulations accelerates degradation and leakage, negating environmental benefits while increasing maintenance costs.

Component disposal regulations affect total ownership costs for parts replacement. Used crankshafts, cylinder heads, and pistons often contain sufficient scrap value for recycling, offsetting replacement costs. However, hazardous material handling requirements for parts contaminated with oil residues or coating materials may introduce disposal fees that negate scrap recovery value in some regions.

Maintaining industrial diesel engines across multi-year service lives requires balancing immediate repair needs against long-term cost management. Yanmar engine parts selection involves technical assessment of component specifications, supply chain evaluation for reliability and speed, and operational context that defines acceptable cost-quality tradeoffs. Equipment generating high utilization revenue justifies premium OEM components and expedited logistics, while seasonal machinery tolerates longer lead times and considered aftermarket alternatives where specifications align with performance requirements.
